Damper Introduction

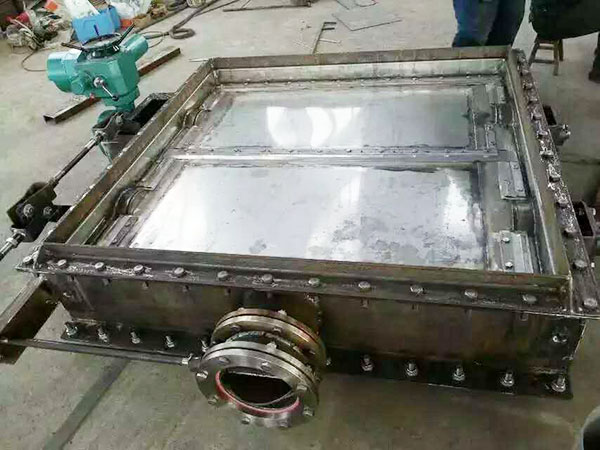

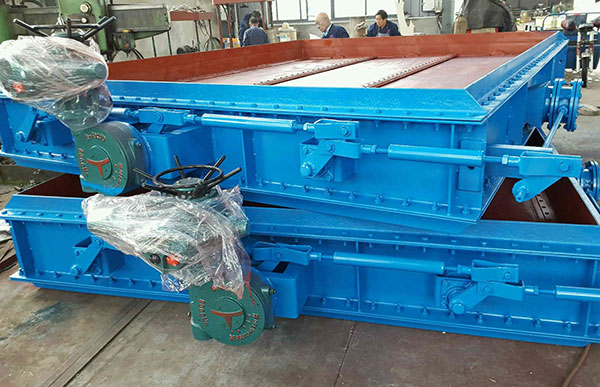

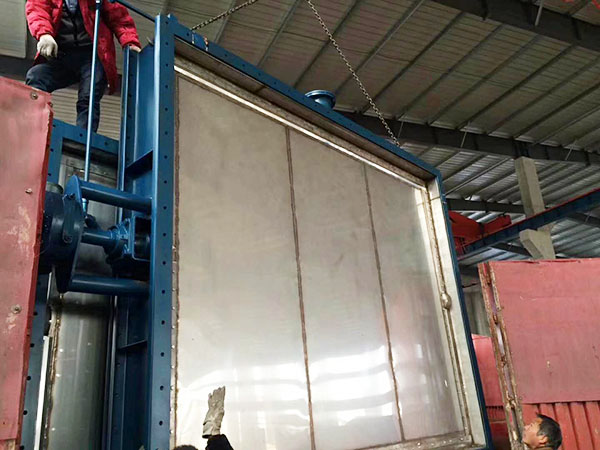

Dampers are mainly installed at the inlet, outlet and bypass flues of absorption towers in flue gas desulfurization systems, as well as in flue gas denitrification and dust removal systems. The damper adopts a louver-type double-layer baffle structure and is fitted with special sealing components for excellent tightness. Its air leakage rate is ≤ 0.1%.

Actuators can be electric or pneumatic, supporting local and remote operation. The opening and closing time can be set as required.

The electric actuator is an electromechanical integrated unit equipped with torque protection and limit devices, and enables remote control. It also features manual/electric switching for installation, commissioning and maintenance.

The pneumatic actuator uses proximity switches to automatically stop the baffle at fully open and fully closed positions. Equipped with locking devices and optimized logic circuits, the lock unlocks when the damper opens and locks securely when it closes, ensuring safe and reliable operation of pneumatic dampers.

Performance Features

Smooth opening and closing without jamming during normal operation, with low flow resistance.

Excellent sealing performance after closure; no internal or external air leakage.

Open/close signals connect to the DCS system for on-line monitoring.

Easy to operate with short installation time; installation can be completed during minor maintenance.

Long service life and basically maintenance-free after one-time installation.

Adopts advanced hydraulic drive for high operational stability.

Resists deformation under high temperature and prevents soot accumulation.

Flange and bolt connection with flue pipes for easy assembly and disassembly.

Manufactured in compliance with relevant industrial standards.

Adopts special sealing materials and patented sealing technology, featuring superior tightness and high wear resistance.
